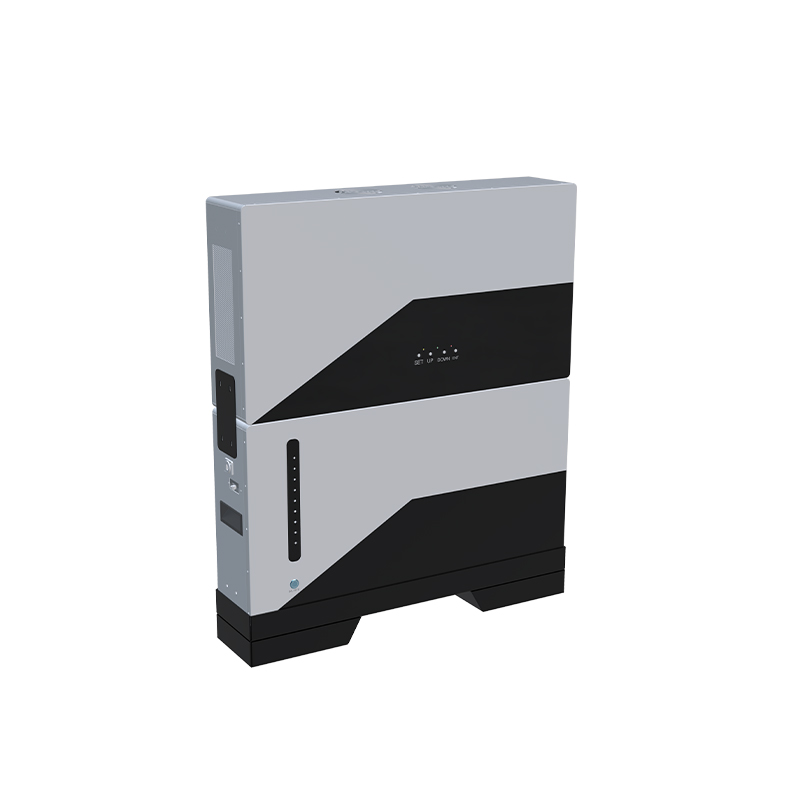

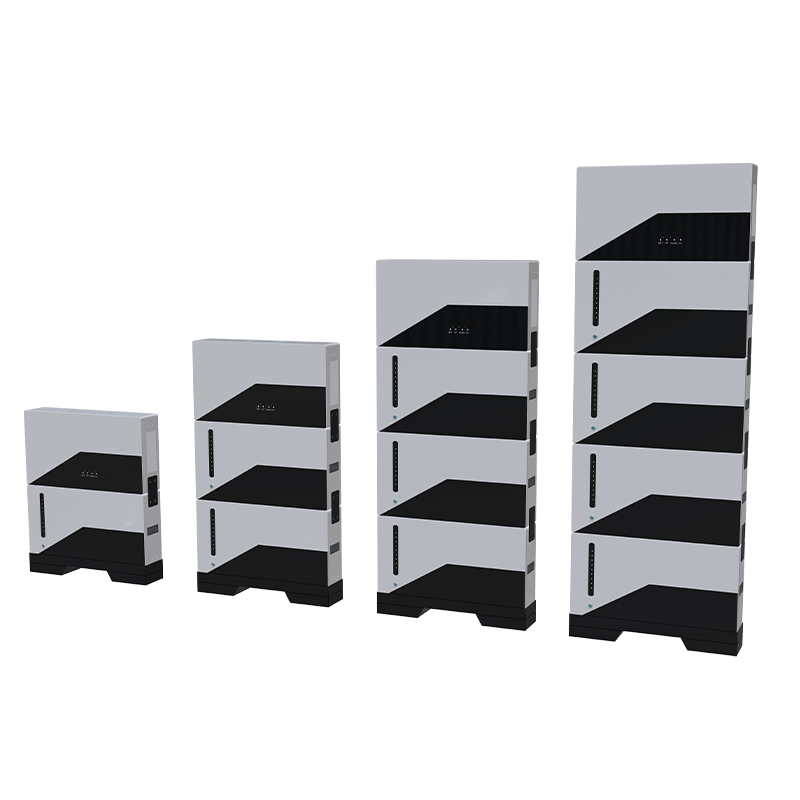

Quick-Insert Stackable Energy Storage OEM/ODM
Customize your products in every detail, we provide customized service for you. If you have any requirements on the shape, dimensions, function, or other aspects of your products, or if you have any new creative products to be developed, you can contact our team and we will work out the most cost-effective production plan for you.
Quantity
-
Detail
Serial No.
ltem
Specification
1
Pack configuration
16S1P
2
Cell Model
3.2V102A
3
Charge Voltage
53.4V (3.35V/Cel)
4
Discharge cut-off Voltage
40V (2.5V)
5
Nominal Voltage
51.2V (3.2V/Cell)
6
Nominal Capacity
102Ah/204Ah/306Ah/408Ah
7
Nominal Energy
5.12kw/10.24kw/15.36kw/20.48kw
8
Max Cont Discharge Current
102A
9
Standard Discharge
Constant current discharge at 0.33C until voltage drops to40V
10
Communication
RS485/Can/RS232
11
Cycle life
5000 cycles, capacity >80%
12
Pack Weight
53/Kg/106/Kg/159/Kg/212/Kg
13
Shipment Voltage
51.2-52.8V
14
Operating Temperature
Charge: 0'C~60°C (standard charging method)Discharge: -20C~60°C
15
Product size (WHD)
700416450/700416700/7004161140/3804161520(mm)
16
Product certification
UN 38.3, MSDS, ROHS
-
